    DTMF BASED ROBOT CAR



    A Call is  made to another mobile connected to robot Truck  for controlling purpose.



    Presentation (PPT) : Introduction, Milestone 1



    Backbone of This Project:

    Microcontroller

    c++

    DTMF



    About DTMF:

    It First invented in Bell Laboratory.

    It Refers to dual tone multiple frequency signal.

    In this two frequency work together.

    It can be seen in mobile phone.



    Main Components:

    2 Mobiles

    Power Supply

    Motor  Driver

    DTMF Decoder

    Atmega 16

    2 Motor



    Component Specification:

    Battery                            6v

    Integrated Circuits:

    Ic 1 -             mt8870
    Ic 2 -             atmega16
    Ic 3 -             L293d
    Ic 4 -             cd7805


    Resistances & Capacitors:

    r1,r2 -              100k resistances

    r3 -                  330k resistances

    r4,r8 -              10k resistances

    c1-                   0.47 micro farad capacitor

    c2,c3,c5,c6 -     22pfarad capacitor

    c4 -                  0.1micro farad capacitor

    Others:

    xtal1 -              3.57 MHZ crystal

    xtal2 -              12mhz crystal

    s1 -                  push on switch



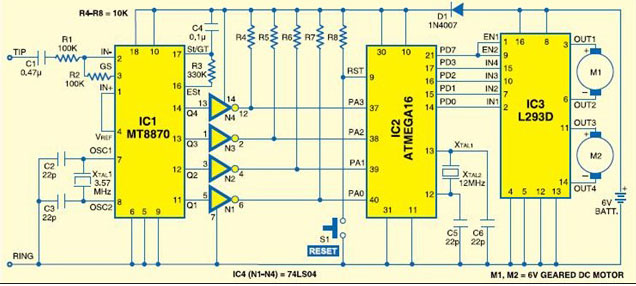

    Circuit Diagram:



     Download circuit diagram



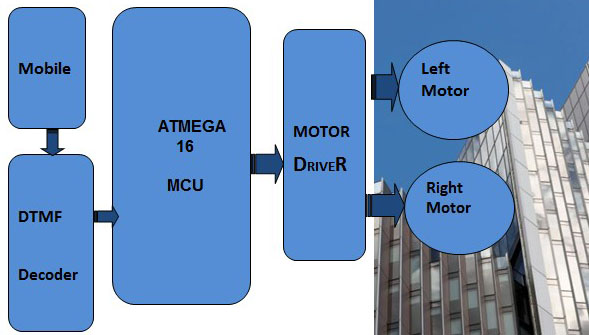

    Block Diagram:



    Block_diagram



    Budget : it will completed in about 1300* INR.



    Time : It will take approximate 12 weeks maximum.





     Video Reference:
