    Line Follower Robot



    Introduction:

    Line follower is a machine that can follow a path. The path can be visible like a black line on a white surface (or vice-versa) or it can be invisible like a magnetic field.

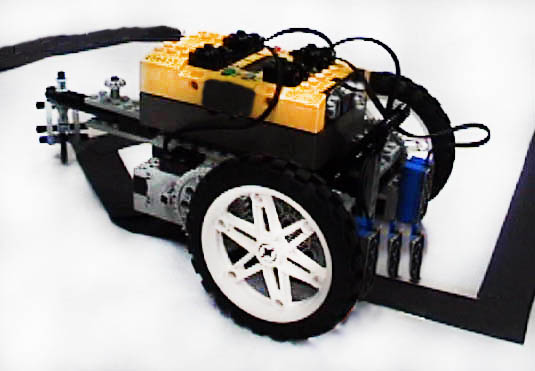

    line robot


    Sensing a line and maneuvering the robot to stay on course, while constantly correcting wrong moves using feedback mechanism forms a simple yet effective closed loop system. As a programmer you get an opportunity to ‘teach’ the robot how to follow the line thus giving it a human-like property of responding to stimuli. Practical applications of a line follower : Automated cars running on roads with embedded magnets; guidance system for industrial robots moving on shop floor etc.


    Hardware:

    POWER SUPPLY UNIT (+5V)
    RECTIFIER
    REGULATOR
    ATMEL89C52
    LCD UNIT
    2 Motors
    L293D
    SENSORS
    RESISTORS
    CAPACITORS
    TRANSISTORS
    LED



    Software:

    code is written by C-language and compiled by using MIDE-51 . For codes contact us it is free for students.



    Block Diagram:

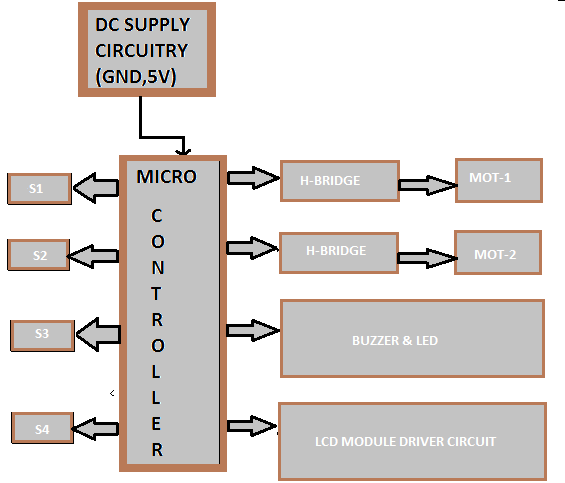

    line follower Robot block diagram





    Circuit diagram



    line follower robot circuit diagram







    For Mor information contactus by clicking on contact us
