    RF DATA TRANSFER



    Introduction:

    Radio frequency (abbreviated RF, rf, or r.f.) is a term that refers to alternating current (AC) having characteristics such that, if the current is input to an antenna, an electromagnetic (EM) field is generated suitable for wireless broadcasting and/or communications. These frequencies cover significant portion of the electromagnetic radiation spectrum, extending from nine kilohertz (9 kHz),the lowest allocated wireless communications frequency (it's within the range of human hearing), to thousands of gigahertz(GHz).

    This project is microcontroller based telemetry system used for the successful transmission of data.

    In this project using two microcontrollers, we are transmitting data from one end using RF transmitter and at other end received by RF receiver which is connected to the pin of microcontroller and display on LCD.


    Hardware:

    LM7805  Regulator
    Power Supply
    Resistors
    Capacitors
    Transistors
    Liquid Crystal Display
    Connectores
    Pressure Switch
    RF transmitter
    RF receiver



    Software:

    Assembler of ATMEL microcontroller series
    PADS for PCB designing



    Block Diagram:

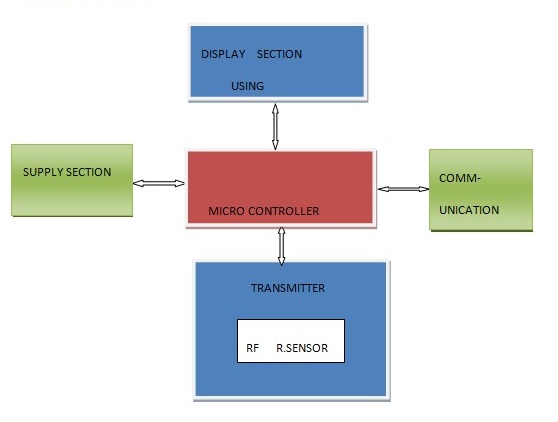

    tx block Diagram

    Transfer System

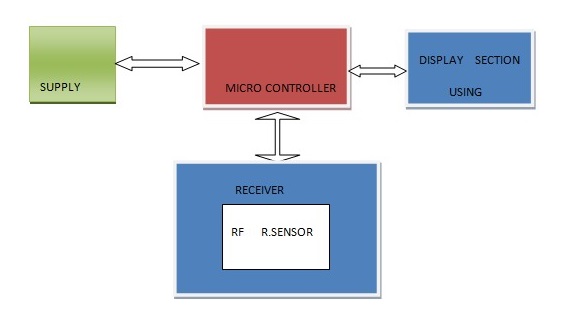

    Rx block diagram

    Receiver System





    For Mor information contactus by clicking on contact us







    Submitter    fbprofile

    Submitted By : Bhanu Datt Pandey

    Profile on Facebook : View profile
